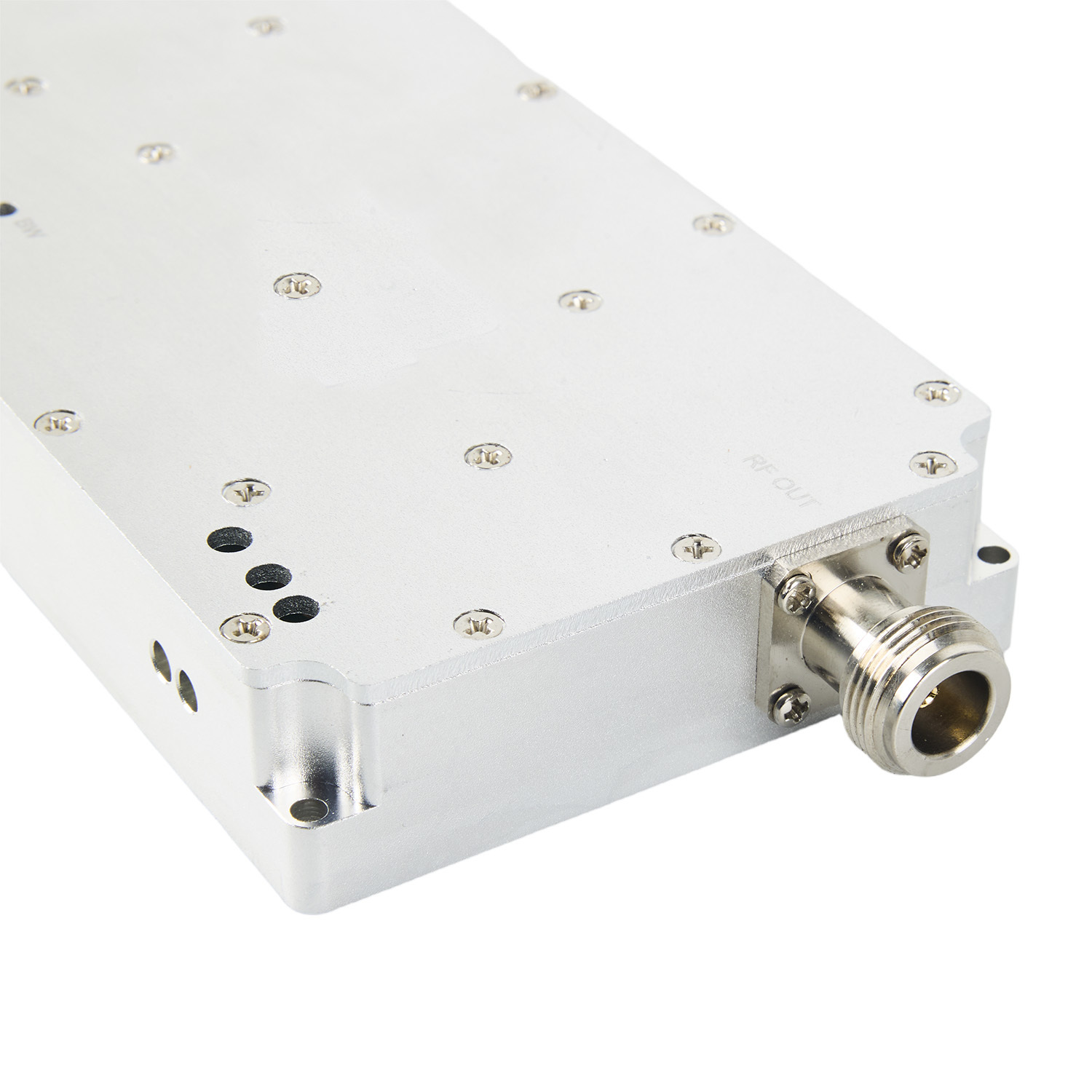

Name: Customized Wideband RF Power Amplifier Module Counter UAS Jammer Module High Power
Brand: Roviyno
Price: 65 USD

Model Number : RAH

Analog sweeping speed : 50 KHz-300K Customizable

Payment Terms : T/T

Working Temperature : -20～+65℃

Supply Ability : <500 pcs 10 working days

Output VSWR : ≤2

MOQ : 100

Output Power (Max) : ≥47 dBm

Packaging Details : Carton box

Brand Name : Roviyno

Frequency Range : 300-1500MHz, 1500-3000MHz, 4000-6000MHz

Price : $65/pc--$165/pc

Ripple in Band : 47±1 dB

Delivery Time : 7-10 working days

Indicator light : Yes

Contact Now

Customized Wideband RF Power Amplifier Module Anti-Drone Module Drone UAV FPV Jammer Module

50W Module Technical Datasheet

Item		Spec.	Remarks
Frequency Range		Customized	Bandwidth Range±10MHz
Working Voltage		28V	24-30V
Analog sweeping speed		120K(default)	50 KHz-300Kcustomizable
Output Power (Max)		≥ 47 dBm	50W
Gain (Max)		47±1 dB
Ripple in Band		≤ 3 dB	Peak
Bandwidth adjustment		Yes	By screw
Center adjustment		Yes	By screw
Enable control		Customize	3-28V
EN switch frequency		10000 times	Switching time interval ≥ 3S
Output VSWR		≤2
High Low Temperature test	Working Temperature	-20～+65℃	Working properly
	Gain Stability	±1 dB	at -20℃~+55℃
	Power stability	±1 dB	at -20℃~+55℃
Working current		≤6A @+28V dc；	CW output 50W
Power supply Port		Positive and negative lines	24-28V; GND
Assembly execution standard		IPC-A-610 Class 1
Design execution standard		SJ 20668-1998
RF output connector		SMA-Female
Green LED indicator light		CD Power ON/OFF	When the power supply voltage is normal, it lights up, and when the power is turned off, it turns off
Blue LED indicator light		RF Power ON/OFF	Turn off when the output power is less than 5-10dBm, and turn on when the output power is normal

Red LED indicator light	Temperature alarm indicator light	temperature is above 100 degrees, it lights up but does not turn off the PA
Working life	10000 hours	The temperature of the chamber during operation shall not exceed 65 ℃
Dimension	*1305818 mm*
Installation Dimension	*1255318 mm*
Screw Size	4-Ø3.20 mm
Weight	280
