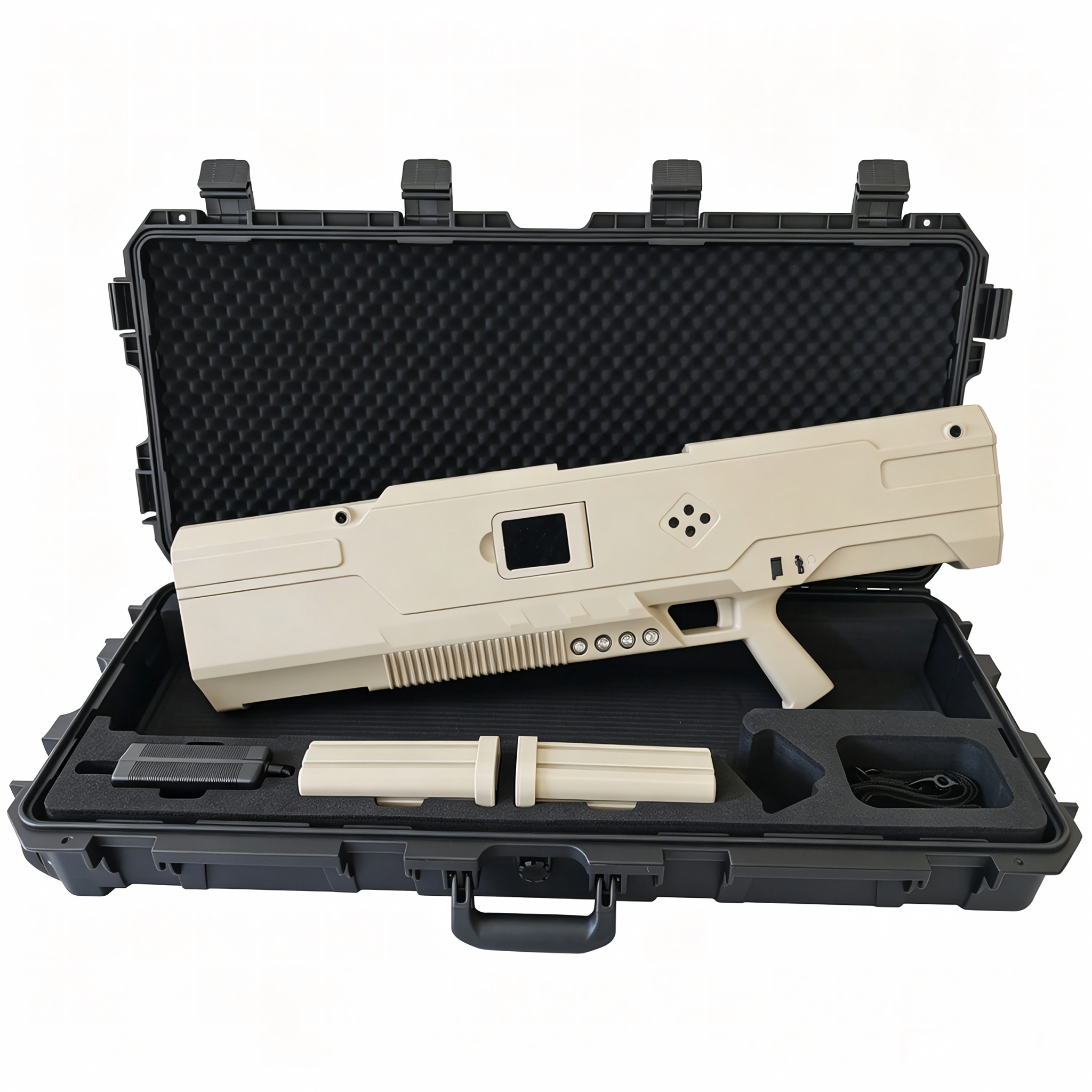

Handheld Drone Detection & Jamming System
Product Overview
The H1D is a portable handheld system integrating drone detection, identification, direction finding and RF jamming in a single device.
Using radio-frequency sensing and counter-UAS technologies, PC1 can detect and identify commercial drones, determine the direction of detected UAVs, locate drones and operators, and perform RF signal jamming against supported drone communication links.
A built-in display provides real-time drone information and directional data, enabling operators to quickly assess potential UAV threats.
PC1 can operate independently in offline mode or connect with multiple devices through a network to provide expanded area coverage and centralized situational awareness. The device can also transmit its own location information to a management platform.
Key Features
Detection & Neutralization Integrated
Combines drone detection and RF jamming in a single handheld platform, reducing equipment requirements and simplifying field deployment.
Drone Detection & Direction Finding
Detects supported UAV RF signals and provides graphical direction information to assist operators in locating potential drone threats.
Multi-Platform Detection
Supports detection of DJI, Autel, FPV, Wi-Fi and custom-built drone platforms, providing broader UAV detection capability beyond mainstream commercial drones.
Real-Time Screen Display
The integrated foldable screen provides a graphical interface for displaying detected drone information and directional data.
Device Location Reporting
Supports transmitting the device's location information to a centralized management platform for coordinated operations.
Portable Field Deployment
The foldable design enables convenient transportation and rapid deployment for mobile security missions.
Standalone & Networked Operation
Can operate independently or be connected with multiple devices to expand operational coverage and improve situational awareness.
Technical Specifications
Detection Specifications
| Item |
Technical Parameters |
| Detection Mode |
RF detection |
| Supported Detection Frequencies |
900 MHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Detection Range |
1–2 km (varies depending on environment and drone model) |
| Detection Battery Runtime |
Approx. 6 hours |
Jamming Specifications
| Item |
Technical Parameters |
| Jamming Mode |
RF jamming |
| Target |
Drone remote-control links |
| Jamming Frequencies |
900 MHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Jamming Range |
1–1.5 km (varies depending on environment and drone model) |
| Jamming Battery Runtime |
Approx. 30 minutes |
Mechanical Specifications
| Item |
Technical Parameters |
| Dimensions |
Approx. 850 × 292 × 88 mm ±5 mm |
| Weight |
Approx. 5.5 kg |
Application Scenarios
The PC1 is designed for mobile counter-UAS operations where rapid detection and response are required.
Typical applications include:
- Critical infrastructure security
- Large-scale events
- VIP security
- Government facilities
- Industrial and energy facilities
- Border and perimeter security
- Daily security patrols
- Temporary counter-UAS deployments
Mission on the Move
With its integrated detection and jamming capabilities, foldable display and portable form factor, PC1 enables security personnel to detect, identify, locate and respond to drone threats directly in the field.
