1. Product Features
1.1 Comprehensive UAV Detection & Identification
Supports detection and identification of mainstream drone brands, including DJI, Autel Robotics, FIMI and Yuneec, as well as various custom-built FPV/cross drones, Wi-Fi drones and other common UAV platforms.
1.2 Extended Detection Range
In open environments, the detection range for selected drone models can reach more than 10 km, depending on the UAV model, transmission power and operating environment.
1.3 Integrated Hardware & Software
Features an integrated UAV detection and control platform, allowing the system to operate independently without requiring additional external equipment.
1.4 Enhanced FPV Detection
Upgraded low-frequency detection capability improves the detection performance of FPV and custom-built drones, including platforms using analog video transmission.

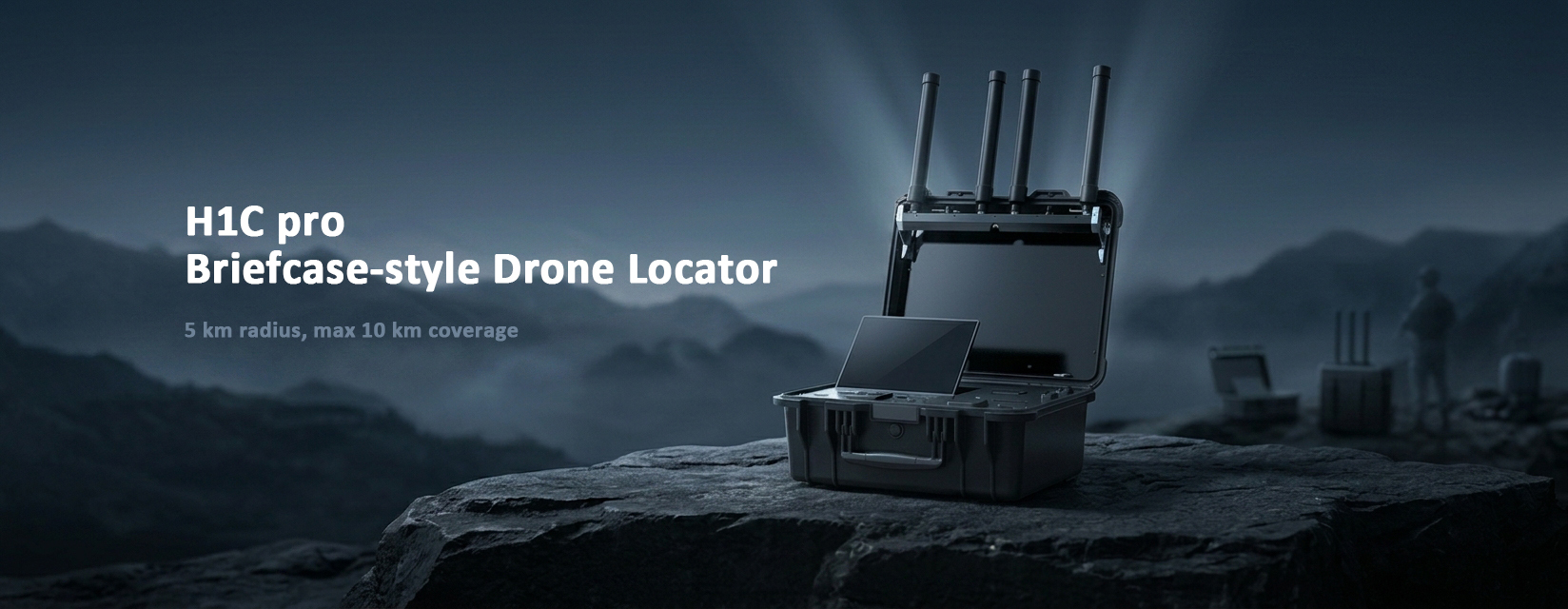

1.5 Portable Suitcase Design
The compact suitcase-style design allows the system to be transported and deployed conveniently for mobile security operations.
1.6 Large Touchscreen Interface
Equipped with a 10.1-inch touchscreen, providing an intuitive interface for system control, UAV information display and operational management.
1.7 Dual Power Supply
Supports both detachable battery power and external AC power, allowing flexible deployment in different operating environments.
1.8 Rapid Deployment
The antenna system adopts a foldable design, enabling quick deployment and storage. The system can be switched on and placed into operation with minimal setup.
2. Technical Specifications
2.1 Detection & Identification Performance
| No. |
Item |
Technical Parameters |
Remarks |
| 1 |
Supported UAV Types |
DJI, Autel Robotics, FIMI, Yuneec, common commercial UAVs, custom-built FPV/cross drones, Wi-Fi drones and other common models |
— |
| 2 |
Supported UAVs for Positioning |
DJI and other supported models |
— |
| 3 |
Detection Frequency Bands |
300 MHz–1.5 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
Expandable |
| 4 |
Detection & Positioning Range |
0.5–5 km in urban environments; up to 10 km in open environments |
Actual range varies depending on environment and UAV model |
| 5 |
Detection Altitude |
0–1,000 m |
— |
| 6 |
Simultaneous Target Detection |
≥20 UAVs |
— |
| 7 |
Simultaneous Trajectory Tracking |
≥5 UAV trajectories |
— |
| 8 |
Azimuth Error |
≤1.5° RMS |
— |
| 9 |
Positioning Accuracy |
≤10 m |
— |
| 10 |
Detection Success Rate |
≥99% |
— |
| 11 |
Deployment Time |
≤90 s |
From folded state to operational status |
| 12 |
Retracting Time |
≤30 s |
— |
| 13 |
Identification Response Time |
≤5 s |
— |
2.2 Mechanical Specifications
| No. |
Item |
Technical Parameters |
Remarks |
| 1 |
Weight |
Approx. 19.5 kg |
Including battery |
| 2 |
Dimensions |
Approx. 520 × 415 × 224 mm |
Case closed |
2.3 Electrical Characteristics
| No. |
Item |
Technical Parameters |
Remarks |
| 1 |
Power Consumption |
≤100 W |
— |
| 2 |
External Power Supply |
100–220 VAC |
— |
| 3 |
Battery Operating Time |
Approx. 4 h |
Battery powered |
2.4 Environmental Specifications
| No. |
Item |
Technical Parameters |
Remarks |
| 1 |
Operating Temperature |
−20°C to +65°C |
— |
| 2 |
Storage Temperature |
−40°C to +70°C |
— |
| 3 |
Protection Rating |
IP65 |
Case closed |
2.5 Touchscreen Specifications
| No. |
Item |
Technical Parameters |
| 1 |
Screen Size |
10.1 inches |
| 2 |
Resolution |
1920 × 1200 |
3. Product Highlights
10+ km Long-Range Detection
Extended detection capability in open environments for selected UAV models.
≥20 UAVs Simultaneously
Monitor multiple drone targets in real time.
≤1.5° Azimuth Error
High-precision direction measurement for accurate target positioning.
≥99% Detection Success Rate
Designed for reliable UAV detection and identification.
300 MHz–5.8 GHz Coverage
Supports multiple key frequency bands with an expandable architecture.
10.1" Large Touchscreen
Clear and intuitive interface for real-time monitoring and system control.
≤90 s Rapid Deployment
Foldable antenna structure enables fast setup and operational readiness.
IP65 Rugged Suitcase Design
Designed for mobile deployment and demanding outdoor security applications.
