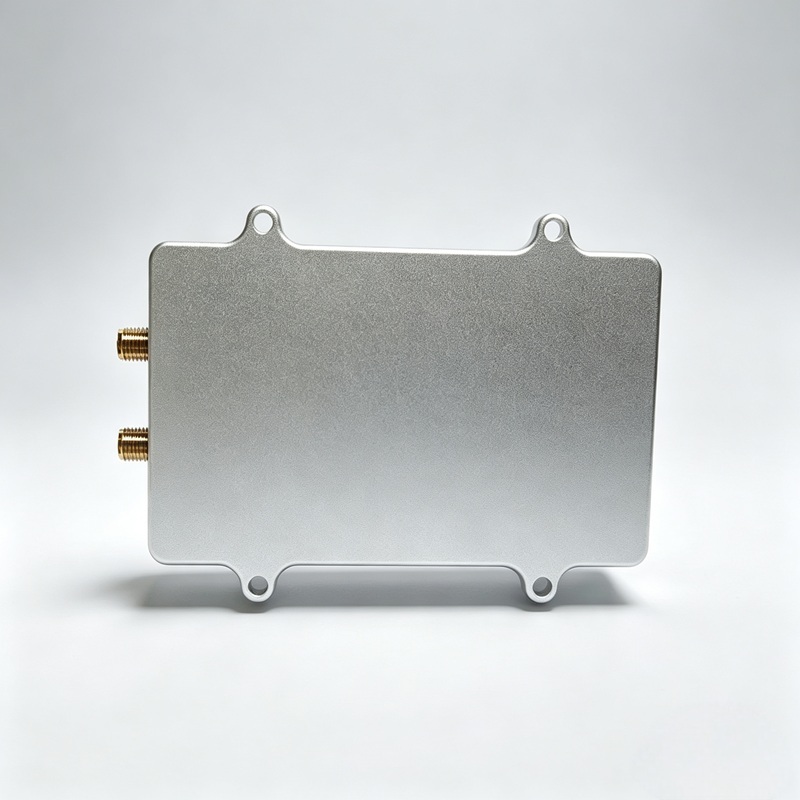

Full-Band RF Spectrum Detection Module with 3km Long-Range
This module is specifically designed for low-altitude safety, covering the entire frequency band from 70MHz to 6GHz. With an omnidirectional antenna, it achieves an effective detection radius of over 1.5 kilometers. It can detect almost all drones (DJI, Autel, Hubsan, FIMI, analog/LTE/Lora links) and provides real-time spectrum output. It is suitable for airport, prison, and major event security scenarios.
The Digital RF Source Module is a programmable wideband signal generation unit designed for multi band amming systems operating in complex electromagnetic environments. It is typicaly integrated with broadband RF power amplifier modules to form a complete UAV countermeasure and communication control solution.With dual RF outputs covering 7o MHz to 6000 MHz, the module supports fast frequency sweeping, adjustable bandwidth up to 400 MHz, and flexible waveform configuration. Software -based control enables precise frequency management, making it suitable for anti-drone systems, electronic warfare applications, and spectrum interference tasks.
Its core advantages lie in its wideband coverage and long-range sensing capabilities. It can accurately identify mainstream drone communication protocols such as DJI DID and Remote ID. Combined with an LNA low-noise amplifier, it improves weak signal reception sensitivity, ensuring stable operation in complex electromagnetic environments.
Main Feature
- Support DJI, Autel, Harbosen, Lightbridge, enhanced WIFI, Analog FPV, Lora, Modified
- LTE etc,
- output the detection result and real-time spectrum data.
- All processing on device.
- Frequency Range:70M-6G
- GPIO controlled 8/16 Antenna Direction Finding.
- Detect Range: 1km-10km
- UDP/TCP/ ttl 3.3v with 115200
- 5V, 3.3W.
- 89mm * 55mm * 18mm
Signal Type
| Signal Type |
Drone Model |
| DJI_ID |
DJI drone ID |
| Lightbridge type1 |
DJI P4, Spark |
| Lightbridge type2 |
Autel Evo2V2, Feimi |
| eWifi_5M |
DJI Mini1,Air1 |
| eWifi_10M |
HUBSAN Zino, HUBSAN Eagle, |
| PALAnalog |
Analog PAL |
| NTSC Analog |
Analog NTSC |
| DJI_0C123 10M |
Mini 2,3, 4k, Air 2, 3, Mavic 2,3, Avata, P4-2.0 |
| DJI_0C123 20M |
Mini 2,3, 4k,Air 2, 3, Mavic 2,3, Avata, P4-2.0 |
| DJI_03+ |
Mavic 3 series |
| DJI_04_type |
Mini4, Air3s, Avata2, Neo |
| Autel_typel/Autel_type2/Autel_type3/Autel_type4/Autel_type5/ |
Autel nano, nano+, lite, lite+, Evo2_V3, MAX4T, |
| Datalink |
P900/P840/Mavlink |
| O3+_ofdm_datalink |
DJl and Autel remote control and some datalink |
| LTE_type0 |
LTE modfied |
| LORA |
RadioMaster, Lora Signal, ExpressLRS, T900 |
| Walksnail |
Walksnail, Avatar |
| DJI_04+ |
Mavic 4 pro |
Command
| Command |
Explanation |
| start or start-freq0 |
Include frequency band
2384 - 2485
5150-5260
5725-5940 |
| start -freq 1 |
430-440
825-845
902-928
1200-1445
2384 - 2485
5150-5260
5725-5940 |
| start-freq2 |
Only 8 DJI ID frequency |
| start-freq3 |
430-440
825-845
900-930
1000-1700
2000-2500
3300-3500
4900-6000 |
| start -freq 4 |
400-1700
2000-2500
3000-3500
4900-6000 |
| start -freq 8 |
825-850
902-928
1400-1450
2384-2485
5150-5260
5725-5940 |
| start -freq xxxx |
Lock frequency
start-freq 2450 |
| -gpiox |
gpiovalue fixed to x |
Custom band:
start -band 430,440,-band 830,845, -band 902,928, -band 1430,1445, -band 2384,2485, - band 5150,5260,-band 5725,5940, |
| reboot |
Reboot device |
| start-heart_beat 0 |
Close heartbeat |
| start-gain xx |
Gain range [10 70] |
| -set_ant xxxx |
Antenna enable bit mask |
| -rx2 x |
X=1 use RX2 for lower frequency range
Mustconfig_2r2tbeforehead |
| -rx2_freq xxxx |
Frequency large than xxxxMhz, use RX1
Frequency less than xxxxMhz, use RX2 |
| config_2r2t |
Turn on RX2
Use RX2 will increase 0.5W compared to use RX1 only |
| config_1rlt |
Close RX1, |
| #NAME? |
Change ip, for example -setip192.168.2.2 |
| -fpv_only 1 |
Scan FPV only, |
| #NAME? |
Close Scan FPVonly, |
| -freqs f1,f2,f3,...fn, |
Lock multiple frequenciese |
| -turn_on_gpio x |
Gpiox pull up |
| -turn_off_gpio x |
Gpio x pull down |
| -fft1 |
Output real-time spectrum
4 byte frequency, 2048 FFT value. |
| -fft0 |
Close real-time spectrum output |
Case 1:
Case 2:
- FPV with NTSC analog
- DJI phantom 4
