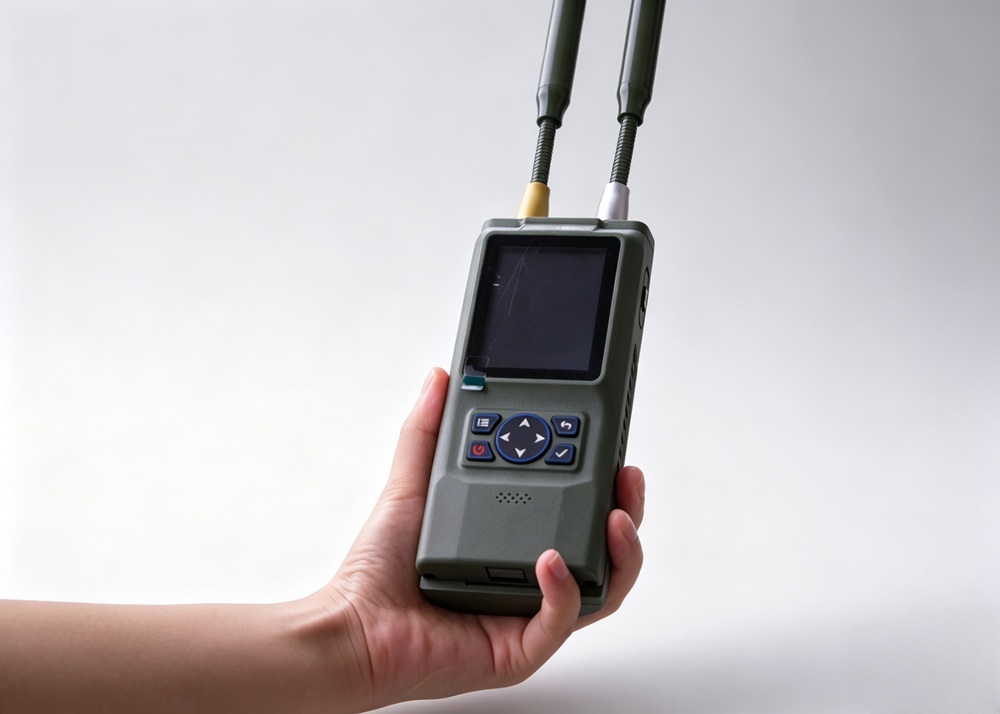

Handheld Drone (UAS) Detection Warning instrument
Product Introduction
This handheld UAV detector is a portable UAV detector customized and developed for the needs of civil UAV black flight prevention and control. And the detector is a passive detection. It detects through the radio spectrum detection method, which is truly free from interference and radiation. The operator can carry the detection work for a long time without causing any harm to the human body.
A user-friendly handheld drone detector designed for quick deployment. Simply install two standard omnidirectional antennas, and the system automatically detects 2.4GHz/5.8GHz drone signals, providing unattended monitoring and instant alarm notifications.
Using self-developed low-power digital-analog hybrid receiver technology and advanced power management technology, using an external ultra-wideband antenna, it can accurately realize the acoustics of commonly used civilian drones, including quadrotors, fixed wings, DIY, and flying machines. , light, and vibration alarms, and at the same time achieve extremely low false alarm rates in complex electromagnetic environments.
Product Feature
* High alarm sensitivity, low false alarm rate, small size, good protection
* Super cost-effective, dual-frequency detection, detection distance 2000m
* A consumer-grade dual-frequency detector customized for the prevention and control of civilian UAV black flights, which can detect most dual-frequency UAVs on the market;
* One-button quick boot, automatic detection, very simple operation, very sensitive detection, effective and quick response;
* Ultra-light and portable, very convenient to carry,
* Sound and light alarm, monitor on duty
* When detecting a drone, it will automatically send out a high-decibel warning audio, and at the same time display a dynamic warning;
* It can identify the whole series of DJI, the whole series of Autel, mainstream WiFi, 5.8GHz video transmission (FPV)
Product Specificaiton
| Key Parameter |
Specification |
| Receiving Band |
100MHz – 8000MHz |
| Video Capture Frequency |
100MHz – 8000MHz analog video transmission |
| Recognition Type |
Supports OFDM HD video transmission signals and FM analog video transmission signals from drones |
| Detection Range |
≥1km (Detection range may vary depending on drone frequency band and transmission power. Using a high-gain directional antenna can extend the detection distance.) |
| Alarm Detection Method |
Vibration and sound alarm |
| Log Record |
Built-in storage for detection records |
| Upgrade & Data Export Interface |
Special magnetic interface cable |
| Starting Mode |
Long press the power button for 3 seconds |
| Power Supply |
Removable lithium battery, Type-C charging |
| Battery Capacity |
2900mAh |
| Battery Life |
Approximately 7 hours of operation (single battery) |
| Control Method |
Physical button operation; supports volume adjustment, screen backlight activation, and drone detection control |
| Information Display |
Real-time detection information display |
| Operating Temperature |
-20℃ to +60℃ |
| Storage Temperature |
-40℃ to +85℃ |
| Protection Rating |
IP54 |
| Device Dimensions |
Approx. 164mm × 44mm × 68mm (main unit without antenna) |
| Weight |
Approx. 580g (including battery and antenna) |
Packing List
|
Order number
|
Item name
|
Quantity
|
|
1
|
Main engine
|
1 tower
|
|
2
|
Lithium polymer battery
|
1 block
|
|
3
|
Exploring antenna
|
2 root
|
|
4
|
Debug line
|
1 root
|
|
5
|
Type-C charging cable
|
1 root
|
|
6
|
Charger
|
1 individual
|
