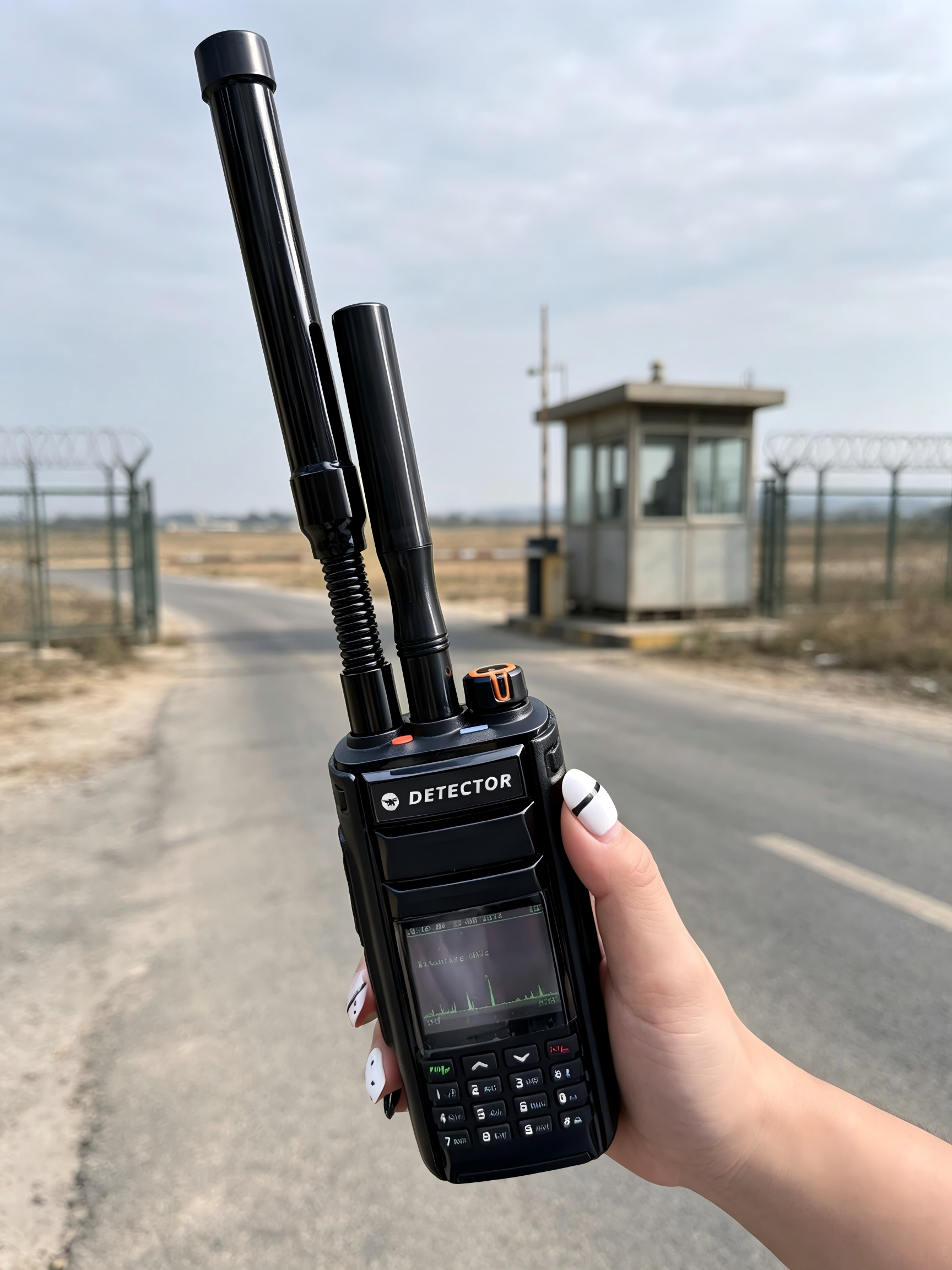

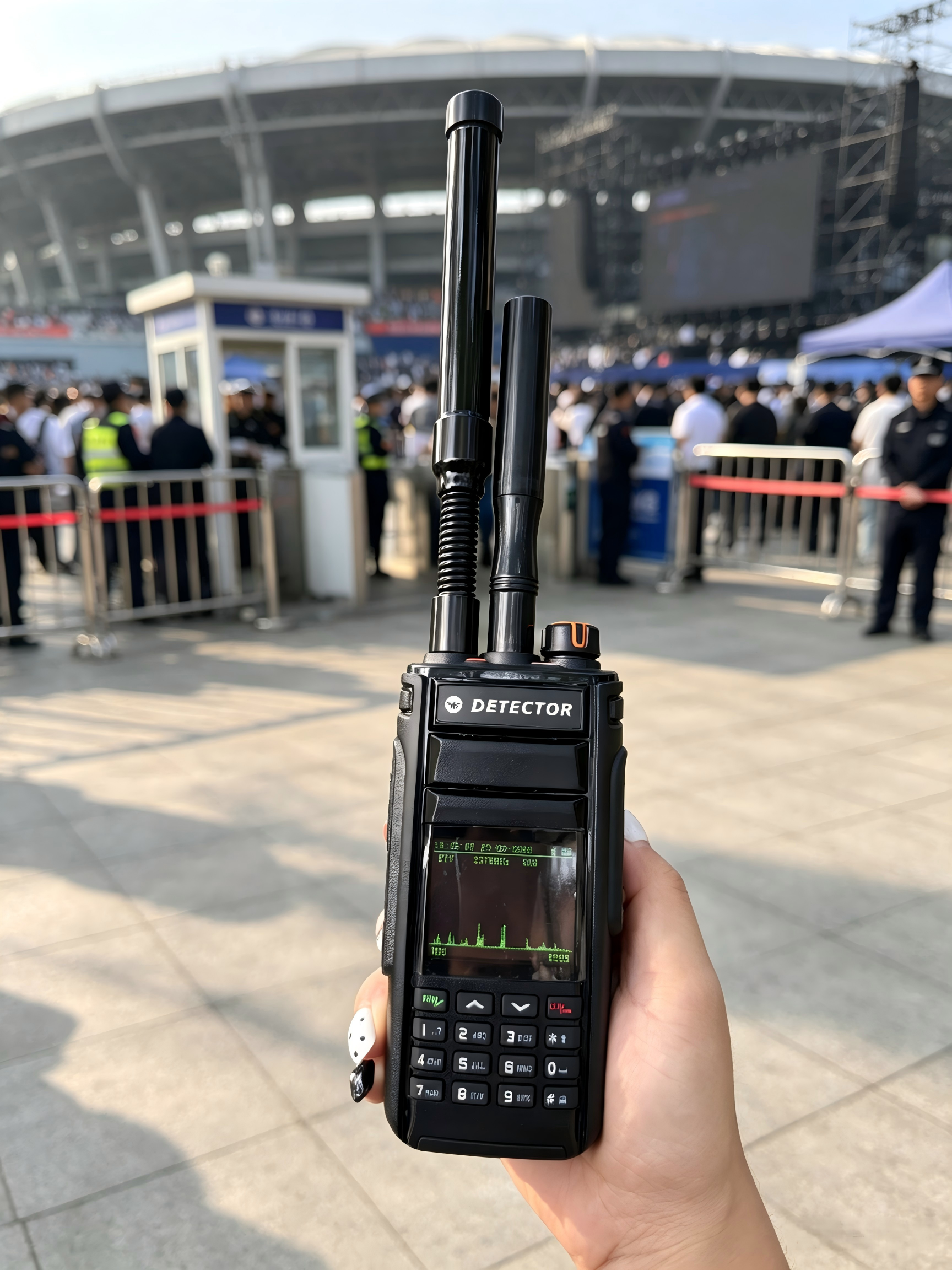

1-3KM Drone Long Range Lightweight Handheld Small Uav Detector
Product Description
The handheld drone detector boasts a remarkably efficient low power consumption design coupled with a highly integrated architecture, empowering it to detect mainstream DJI, Autel, and a wide range of rotary wing drones utilizing OFDM high-definition image transmission. It also identifies WIFI drones, DIY drones, and FPV drones. The device is characterized by an exceptional high detection sensitivity, impressive long detection range, rapid response speed, minimal false alarm rates, and user-friendly operation.
In the rapidly evolving landscape of unmanned aerial vehicle (UAV) technology, the demand for robust low-altitude security management tools has never been higher. We, a leader in security technology innovation, introduces the Handheld Drone Locator-a cutting-edge, portable device engineered to address the critical needs of drone detection, positioning, tracking, and low-altitude security enforcement. Combining compact design, powerful performance, and a comprehensive feature suite, the sets a new standard for handheld drone security equipment, making it an essential tool for security staff, airport authorities, venue managers, and anyone tasked with safeguarding airspace.
Key Feature:
300 MHz–6.2 GHz Wideband Detection
Wide frequency coverage for detecting a broad range of FPV and drone video transmission signals.
≥1 km Detection Range
Designed for reliable drone signal detection in typical outdoor environments.
−96 dBm High Sensitivity
High receiver sensitivity enables detection of weak RF signals at extended distances.
Digital & Analog FPV Detection
Supports OFDM high-definition digital video transmission and FM analog FPV video signals.
≥6 Hours Battery Life
Removable 2,400 mAh lithium battery supports extended field operations.
Ultra-Compact & Lightweight
Only ≤500 g including battery, with a compact 135 × 60 × 35 mm host design.
Technical Specifications
| Item |
Technical Parameters |
| Receiving Frequency Range |
300 MHz–6.2 GHz |
| Signal Identification |
OFDM high-definition digital video transmission signals; FM analog FPV video transmission signals |
| Detection Range |
≥1 km |
| Detection Sensitivity |
≤ −96 dBm |
| Alarm Methods |
Audible, visual and headset alarms |
| Alarm Log Capacity |
≥500 alarm records |
| Upgrade & Data Export Interface |
Micro-USB |
| Power Supply |
Removable lithium-ion battery; USB Type-C charging |
| Battery Capacity |
2,400 mAh |
| Battery Life |
≥6 hours (with one battery) |
| Dimensions |
≤135 × 60 × 35 mm (host, antenna excluded) |
| Weight |
≤500 g (including one battery) |
